Dock Leveller

Our Hinge Lip Dock Leveller provides a seamless connection between loading bays and vehicles, ensuring safe, efficient transfer of goods. Built for durability and flexibility, it adapts to movement during loading, with high-performance features for reliability in demanding environments.

Advantages

Durability

Safety Features

Emergency stop valve

Interested in Ordering?

Call now

Suited to Food Industry / Health / Industrial sector applications.

Check the tabs below for more information.
Request Call back

Description

Dock Leveller Options & Solutions

The Hinge Lip Dock Leveller is expertly designed to simplify and safeguard the loading and unloading process. Once activated, the platform rises to its highest position before the hinged lip automatically swings out. The platform and lip then gently lower until they rest on the vehicle bed, remaining in float mode to adjust with the vehicle suspension during loading operations.

Whether you’re handling standard or high-load applications, these dock levellers provide strength, flexibility, and safety. They are custom-manufactured in various widths, lengths, and lip sizes to fit each loading bay setup and dock shelter. With multiple mounting styles and coating options, including a corrosion-resistant zinc spray finish, this leveller is designed to perform even in the harshest industrial environments.

Ideal for warehouses, logistics hubs, manufacturing plants, and distribution centres, this system guarantees that your loading operations remain seamless, compliant, and secure.

Additional information

Application(s)

External, Food production facilities, Industrial units and warehouses

Curtain material(s)

Galvanised steel

Finish

Polyester powder coat

Frame material(s)

Galvanised steel

Mode of operation

Electric

Standard Specification

Mounting Options:

Hinge lip dock levellers are available in three different types of frame arrangements.

  • Pit Mounted: Ideal for existing precast pits
  • Suspended Frame: Includes integrated kerb angles. Suitable for pits which require a tail lift recess.Cast-In Frame: Suitable for new pit installations, eliminating expensive shuttering

Load Capacity Options:

  • 6000kg
  • 10,000kg

Size Range:

  • Nominal Width: 1750mm – 2250mm
  • Nominal Length: 1750mm – 5000mm
  • Lip Length: 400mm – 560mm
  • Working Range: 12.5% (7 degrees max)

Construction:

  • Platform Material: 6/8mm or 8/10mm Durbar
  • Lip Material: 10/12mm or 12/14mm Durbar
  • Hinge Configuration: Heavy-duty piano-style hinge
  • Side Guards: Galvanised toe guards

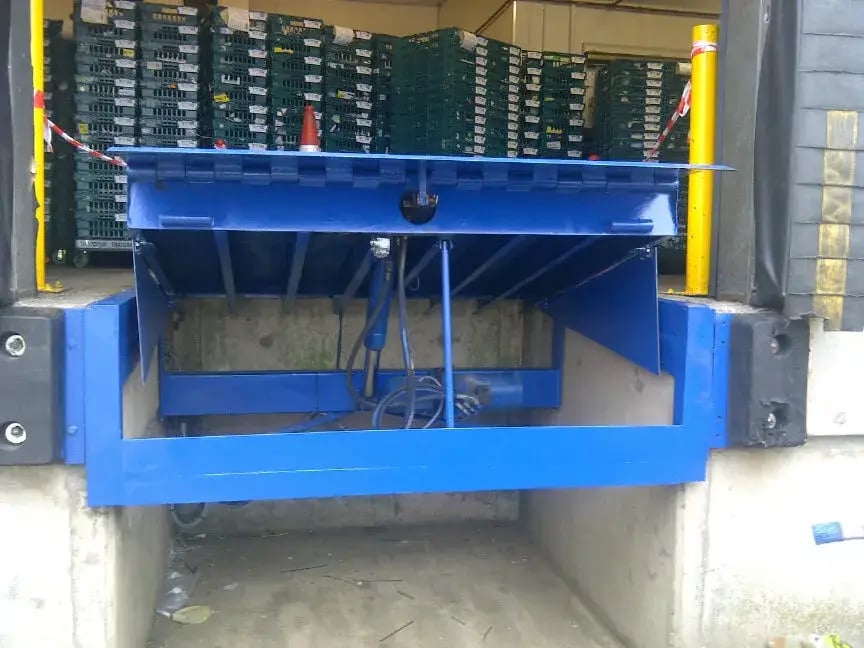

  • Maintenance Strut: Y-shaped safety prop

Motor & Controls:

  • Hydraulic Pump Motor: 1.1kW
  • Voltage: 400V, 3-Phase
  • Solenoid Valve: 24v RAC
  • Control Panel Protection: Minimum IP65
  • Hydraulic Safety: Built-in safety burst valve cartridge

Standard Safety Features:

  • Dock interlock system
  • Emergency stop button (contrasting red on yellow background)
  • Yellow/black 50mm visual marking for trip hazard identification

Surface Treatment:

  • Standard finish: RAL 5003 blue enamel paint
  • Custom RAL colours available

Optional Extras

Safety Enhancements:

  • Additional emergency stop button
  • Park limit switch

Surface Treatment Upgrades:

  • Any RAL colour
  • Hot Zinc Finish (10-year corrosion guarantee for humid or coastal environments)
  • Anti-Slip Coating

Resources

Dock Leveller Repairs & Upgrades

Frequently Asked Questions

Here are some answers to questions we are commonly asked about our Dock Leveller:

Yes, absolutely. Every leveller is meticulously designed and crafted to cater to your unique requirements, whether it be the size, preferred mounting method, or the desired finish. Our team takes great care in ensuring that each leveller is tailored precisely to your specifications, guaranteeing a perfect fit for your application. With a keen attention to detail and a dedication to quality, we pride ourselves on delivering custom-built levellers that exceed expectations. Trust us to provide the ideal solution for your needs.

When it comes to choosing a dock leveller for your loading bay, understanding the differences between a hinge lip and swing lip design is crucial. The main distinction lies in how the lip of the leveller operates. A hinge lip dock leveller has a fixed hinge arrangement, allowing the lip to pivot up and down to bridge the gap between the dock and the vehicle.

On the other hand, a swing lip dock leveller has a swinging lip that extends horizontally before dropping down vertically to meet the truck bed. This design offers more flexibility and ease of use compared to the hinge lip option. Ultimately, the choice between the two will depend on your specific loading dock requirements and preferences.

Dock levellers are essential equipment for businesses that require efficient loading and unloading of goods from trucks. These devices bridge the gap between the vehicle and the loading dock, ensuring a smooth and safe transition for forklifts and other machinery.

With the ability to adjust to various heights and angles, dock levellers play a crucial role in maintaining productivity and preventing accidents in the workplace. Their sturdy construction and reliability make them a valuable asset for any company aiming to streamline its logistics operations.

Have a question we haven't answered here?Get in touch!
