Our High Speed Roller Doors are designed to perform exceptionally in high-pressure environments, such as food production, pharmaceuticals, and logistics. Their compact roll-up mechanism ensures fast and efficient operation, ideal for internal openings where speed, hygiene, and safety are essential. These doors provide a smart solution for businesses aiming to streamline their operations and uphold a high standard of performance.
A&C Maintenance’s Industrial High Speed Roll Up Doors are engineered for internal environments where quick access, cleanliness, and temperature regulation are essential. Whether you’re involved in the food industry, pharmaceuticals, retail, or warehousing, these doors ensure your operations run smoothly with minimal downtime.
With a compact headbox, rapid opening speeds, and intelligent safety technology as standard, these doors provide a cost-effective solution for high-traffic internal areas. The robust curtain is easy to clean and withstands pressure changes, while advanced features such as wireless safety edges and photo cells contribute to protecting personnel and equipment.
You can also customise your setup with motion sensors, colour finishes, or even our self-repairing curtain technology – minimising repair callouts and maintaining your productivity.
As with all our products, A&C Maintenance offers expert supply, installation, and maintenance, ensuring you’re always covered.
| Application(s) | Commercial buildings, External, Food production facilities, Garages and Workshops, Hospitals and healthcare facilities, Industrial units and warehouses, Storage Units, Transport Depots |
|---|---|
| Curtain Colour(s) | |
| Curtain material(s) | High strength polyester fabric |
| Leaf & frame colour(s) | |
| Max. area | 12m² |
| Mode of operation | Electric |
| Opening speed | Up to 1.2m/sec |
| Seal options | Twin-pile guide seal |
| Wind resistance (km/h) [size dependent] | Wind Load: Maximum class 2 EN 12424 |
Use: Suitable for intensive and continuous use applications.
Solidity: The frame / canopy is made from 2mm galvanised steel, making the structure very strong / sturdy and self supporting – with no welded parts.
Lifetime: Tested in working conditions to over 1.5 million cycles, with excellent results.
Resistance: Wind load and differences in pressure up to Class 2 (EN12424) when tested in the fully closed position. Operational wind loads will vary depending on door size & installation accuracy.
380/500 V three phases. With electronic cards. Available operating modes: automatic with closing timer, semi-automatic with closing timer or deadman mode. IP 55. Cycle counter as optional extra. Control cards with inverter as optional extra. Powder coated steel board box. Stainless steel as an optional extras.
Maximum Dimensions: 6000mm x 5000mm WxH
Frame/Guides: 2mm thick galvanised steel. Stainless steel AISI 304 or 316 available as an optional extra (powder coating is available as an optional extra)
Roller: Galvanised steel
Motor: Three phase, self braking. Other options are available.
Curtain: Polyester fabric, coated with coloured PVC (to choose colours see the chart) 900g/m2. Insulated or modular versions as an optional extra. (1300g/m2 insulated material available on request)

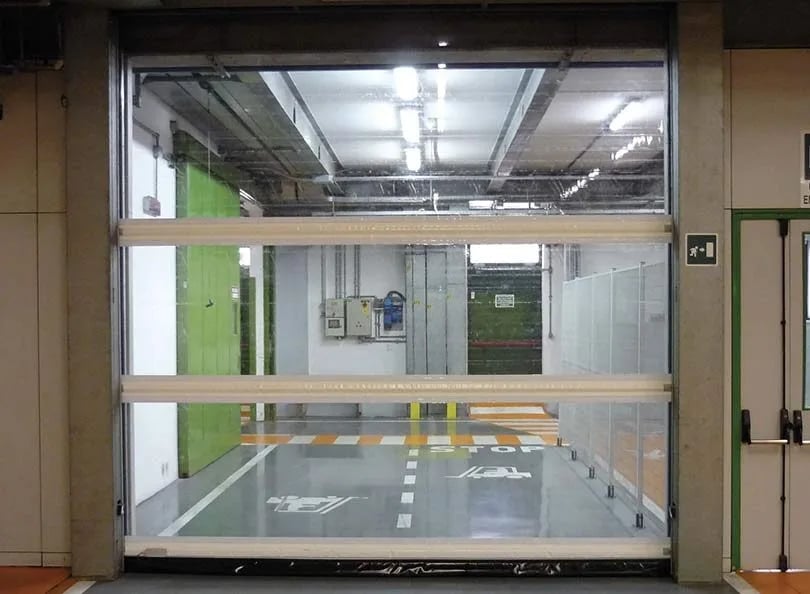

Vision: Rectangular vision panels with rounded corners / or full door width transparent sections.
Mesh sections as an optional extra.
Override: By cranks, Counterweights as an optional extra.
Alternate Activation – Options Include Induction loops, motion detectors, pull cords, remote controls, photocells, badge readers, code keyboards, no touch push buttons.
Standard: Compliant with EN 13241
Wind Load: Maximum class 2 EN 12424
Temperatures: From 0°C up to + 70°C
– Light industries
– Heavy Industries
– Iron and steel industries
– Engineering industries
– Textile industries
– Chemical industries
– Food processing industries
With decades of experience in industrial and commercial doors, A&C Maintenance (A&C Maintenance) doesn’t just install products – we build long-term partnerships. From specification and safety to servicing and emergency support, we ensure your high speed doors perform flawlessly day in, day out.
Absolutely. From colour finishes and vision panels to motion sensors, remote controls, and self-repairing functionality, A&C Maintenance tailors each rapid roller door to your environment and workflow.
Yes, while high–speed doors are typically used for internal access control, they still provide a strong barrier thanks to their reinforced curtain and locking motor. For external security applications, A&C Maintenance can recommend additional roller shutters or sectional overhead doors designed specifically for physical high security.
There are three main types of high-speed industrial doors, each designed for specific environments and operational needs. You can view them all in our High Speed Doors category:
High Speed Roll Up Doors – Ideal for internal use, these compact doors roll vertically into a slim headbox and are perfect for areas requiring fast access and hygiene, such as food production and laboratories.
High Speed Roller Shutters – A more robust option combining speed with durability. High speed steel roller shutter doors are suitable for both internal and external use, offering enhanced wind resistance and security.
High Speed Fold Up Doors – Designed for larger openings, these doors fold vertically in sections, making them a great choice for warehouses, logistics hubs, and external environments with high air pressure.
High speed roll up doors are fast action internal doors designed to open and close quickly. This helps maintain temperature control, hygiene, and workflow efficiency in busy environments.
At A&C Maintenance, we specialise in supplying and installing these smart, compact doors with full safety and customisation options. Our high performance, high speed curtain doors provide a secure, safe and efficient option for a huge variety of industrial applications.
