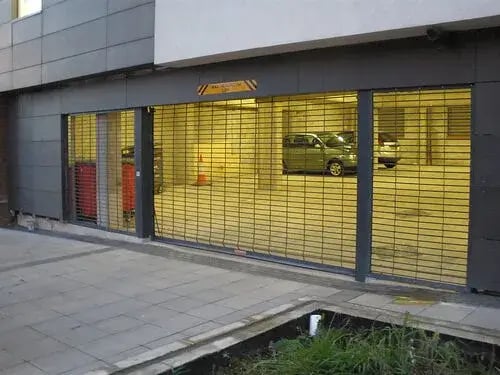

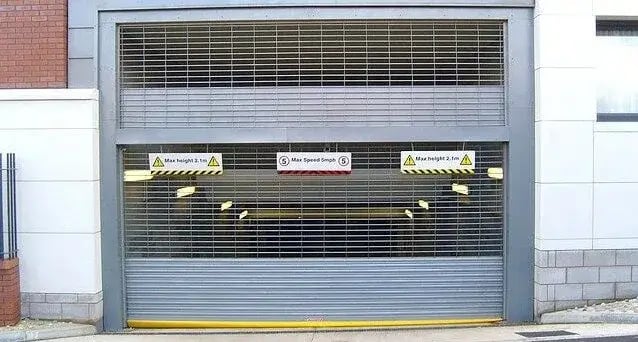

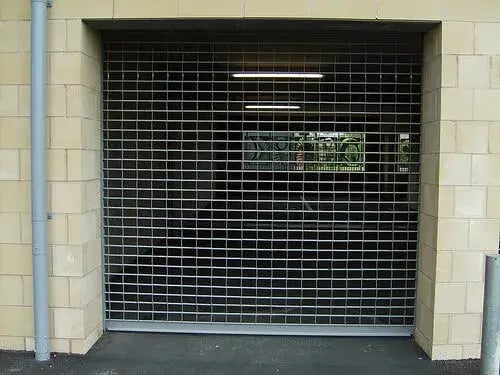

The Visionguard 45 is a sturdy, high-performance rolling security grille ideal as a car park shutter. It is specifically designed for industrial and commercial car park use, combining durability with visibility and airflow. It is the perfect solution for environments needing both protection and practicality.
Each unit is custom-built to fit the structuRAL opening and provides smooth, silent operation with a discreet, self-contained design. Whether you’re securing a multi-storey car park, a commercial building, or an underground garage, the Visionguard 45 offers long-lasting security without sacrificing functionality.
The Visionguard 45 is a high-specification rolling security grille engineered for busy car parks, commercial premises, and high-traffic zones where both airflow and visibility are essential. Its open brickbond pattern and galvanised tube construction allow for superior ventilation while maintaining a strong physical barrier. Designed for internal or external use, this shutter combines durability with smooth, quiet operation and a compact visual footprint.
Every grille is custom-built to suit the size and shape of your structural opening, with a range of finishes and smart access control options. The Visionguard 45 is ideal for multi-storey or underground car parks and commercial buildings requiring reliable, secure, and discreet protection.
| Application(s) | Car park, Commercial buildings, External |
|---|---|
| Max. area | 20m² |
| Mode of operation | Electric |
| Curtain Colour(s) | |
| Leaf & frame colour(s) |
A heavy duty, high security retractable shutter designed for industrial door security, commercial window security, and car park applications.
The curtain is built from 14mm x 1.2mm galvanised steel tubes and 2mm flat laths, set in a brickbond pattern for durability, airflow, and visibility. Side guides are formed from 90 x 32 x 3mm cold-rolled mild steel channels and secured with continuous box sections. The bottom rail is a 14mm x 70mm extruded box section. All components can be powder-coated in standard BS or RAL colours.
Electric operation is standard, using either an enclosed tube motor or an outboard motor depending on the opening size. Available in single-phase (240V) or 3-phase (415V) supply. Manual override is included for emergency use. Opening speed is suitable for high-traffic environments with controlled, smooth operation.
Designed for openings up to 20m². Offers moderate wind resistance and good airflow properties—ideal for car park environments and commercial buildings. Weight varies by configuration and finish.
Enhance performance and functionality with the following optional features:
This product has no specifically related resources. Browse all resources.
We recommend scheduling biannual servicing for high-traffic areas like car parks. A&C Maintenance offers custom plans to keep shutters optimal and compliant with safety standards.
This regular upkeep is essential to prevent any unexpected malfunctions and prolong the lifespan of your shutters, ultimately saving you time and money in the long run. Trust A&C Maintenance to keep your shutters functioning at their best.
Indeed, safety is of utmost importance when it comes to the Visionguard 45. This advanced system is equipped with essential features such as photo cells, safety edges, brakes, and manual override as standard.
For added convenience and security, customers can also opt for additional options like induction loops and remote controls upon request. With these key safety features in place, users can have peace of mind knowing that their property is well-protected and secure.
The Visionguard 45 roller shutter can be powder-coated in various RAL or BS colours, allowing you to match your brand or building design. This offers a sleek look, boosting your property’s appeal while ensuring security.
Whether you opt for a bold statement colour or a subtle blend with the surroundings, the choice is yours to make your shutter truly unique and eye-catching.
These roller shutters, used in car parks, industrial premises, and loading bays, prioritise security, ventilation, and visibility. Designed for durability, they provide a polished, smart look that enhances the building’s appearance.
Made from durable materials, they provide a reliable barrier against potential intruders while allowing for controlled airflow and visibility when needed.
