Visionguard 76 Shop Shutters

With our Visionguard 76 shop shutter, we offer an extensive selection of roller shutter designs that balance light and visibility while ensuring a high level of security. These shop front security shutters are perfect for retail spaces where ‘window shopping’ is crucial for driving commerce. They also provide extra security for all types of commercial properties without adopting an overly industrial appearance.

Advantages

Aesthetic design

Auto timed return

Choice of most RAL Colours

Customisable Upgrades Available

Durability

High Security

Safety Features

Ground lock & bullet lock interlock

Manual Override

Safety Brake

Safety Edge

Safety photo cells

Security Locks

Interested in Ordering?

Call now

Suited to Commercial / Education / Health / Industrial / Retail sector applications.

Check the tabs below for more information.

Request Call back

Description

Security Shutters for Shop Fronts, Offices & More

The Visionguard 76 shop shutters offer a premium security solution designed to deliver maximum protection without sacrificing visibility or aesthetics. Made from high-security galvanised steel, these shutters feature a traditional scroll profile that seamlessly blends into commercial environments, including retail shops, offices, service counters, and reception areas. The medium vision perforations provide excellent visibility—further enhanced when backlit—making them ideal for businesses that rely on showcasing products after hours. Available in a range of RAL colours, these shutters can be customised to complement any storefront, ensuring a professional and inviting appearance while protecting against unauthorised access.

Designed for durability and ease of use, the Visionguard 76 shutters come with both manual and electric operation options, reinforced bottom rails, and steel side guides to ensure superior structuRAL integrity. Enhanced security features, including centre locks, bullet locks, ground locks, and anti-ram raid posts, add additional layers of protection against break-ins. For businesses seeking improved convenience, the electric operation upgrades include radio transmitters, motion detectors, and group control systems. With optional personnel doors, canopies, and custom seals, these shutters provide a fully adaptable solution for the commercial, educational, industrial, and healthcare sectors. Whether you need solid or perforated curtains, the Visionguard 76 strikes an optimal balance of security, visibility, and customisation, making it the perfect choice for safeguarding your business.

Additional information

Application(s)	Car park, Commercial buildings, Community Centres, Doorways, External, Hospitals and healthcare facilities, Offices, Public Buildings, Retail stores and shopfronts, Schools, Colleges & Universities, Windows
Curtain material(s)	Galvanised steel
Finish	Plastisol Finish, Polyester powder coat
Frame material(s)	Galvanised steel
Lath height	76mm
Max. area	20m²
Mode of operation	Electric
Curtain Colour(s)
Leaf & frame colour(s)

Standard Specification

A vertical roller shutter can be operated manually or electrically, featuring either a solid or perforated curtain.

Curtain

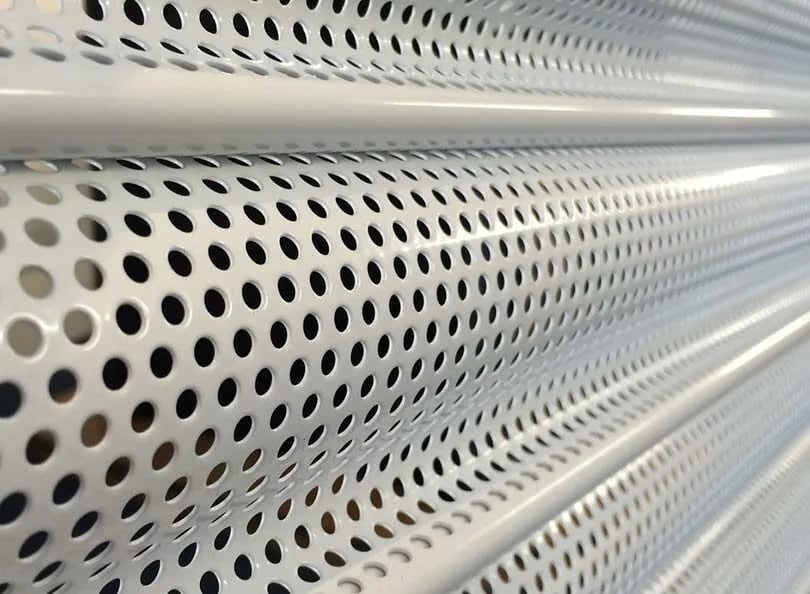

The Visionguard 76 shutter curtain is made from 76mm galvanised cold-rolled scroll sections, ensuring strength and durability. Each alternate lath has a steel end lock to prevent lateRAL movement, while wind anchor locks are added for larger doors to enhance stability. The perforated version features micro-circular perforations for a balance of visibility and security, making it perfect for businesses requiring both light and protection.

Bottom Rail

The bottom rail is reinforced with a heavy-duty steel angle, forming an inverted ‘T’ shape to provide added strength and structural integrity. This ensures the shutter’s durability and prevents distortion, even with frequent use. The design also helps maintain smooth operation and resists impacts, enhancing the shutter’s lifespan in commercial settings.

Side Guides

The side guides are made from cold-rolled mild steel channel sections, providing strength and stability for the shutter’s smooth movement. These guides are securely fixed to the opening structure using full-height mild steel angles, ensuring durability and consistent performance. Additionally, wear-resistant strips are included to reduce friction and noise during operation.

Roller Assembly

The roller assembly is constructed from a strong mild steel tube, mounted on bright steel shafts that run in ball races for smooth, frictionless movement. This design reduces wear and ensures quiet operation, improving the shutter's longevity and minimising the need for maintenance over time.

Optional Extras

Roller shutters can be provided with many optional extras/upgrades.

Colour Finish

Polyester powder coat finishes to a standard BS or RAL colour (Subject to availability).

Seals

Nylon Brush Seal
100 – 200mm Head Seal
Wrap-around Rubber Seal
Threshold Seal

Canopies & Closures

Hood Cover
Fascia
Soffit
Jamb Flashing Closure

Personnel Doors

Wicket Gate
Steel Hinged Door (With fixed infill panel)

Security Options & Upgrades

Centre Lock
Bullet Locks
Chain Keep
Ground Lock
Shoot Bolt
Keyswitch Locking Box
Anti-Ram Raid Posts

Door Protection

Steel Protection Bollards (Powder coated yellow and supplied with yellow & black hazard tape as standard).
Steel Jamb Protection

Safety Elements

Photo Cells
Safety bottom edge
Ground Lock & Bullet Lock Interlock

Electric Operation Upgrades

Push Button Station (Supplied as standard with electrically operated doors)
Lockable push button station
Rocker switch (Supplied as standard with tube motor shutters).
Key switch
Radio Transmitters
Motion Detectors
Induction Loops
Photo Cells
Group Control

Resources

Frequently Asked Questions

Here are some answers to questions we are commonly asked about our Visionguard 76 Shop Shutters:

To operate your shop shutter, refer to the user manual provided for detailed instructions. The process of opening or closing the shutter will differ depending on the model and type of operation, be it manual or electric. It is essential to adhere to the guidelines outlined in the manual to guarantee seamless functionality and avoid any potential harm.

Furthermore, it is essential to make sure that the shutter receives regular maintenance and servicing in order to maximise its lifespan and ensure that it continues to operate at its best. By scheduling routine maintenance, you can identify any potential issues before they become major problems, saving you both time and money in the long run. It is also essential to clean the shutter regularly to prevent the buildup of dirt and debris, which could affect its functionality. Overall, taking care of your shutter through regular maintenance will help keep it in top condition and ensure that it continues to perform effectively for years.

When installing a new shop shutter, seveRAL important considerations must be kept in mind. In most cases, you will not need planning permission for a shop shutter as long as it meets certain criteria. However, it is advisable to check with your local council to confirm whether any restrictions or regulations apply to your specific location. Planning permission may be necessary if your shop is located in a conservation area or if the shutter is deemed to significantly alter the external appearance of the building. Be sure to consult a professional to ensure compliance with all relevant guidelines.

External roller shutters provide significant improvements to the security of your commercial property. These robust barriers not only serve as a physical deterrent to potential intruders but also offer enhanced protection against break-ins and vandalism. With their strong construction and sophisticated locking mechanisms, external roller shutters grant peace of mind for business owners aiming to protect their valuable assets. Invest in this effective security solution to reduce the risk of unauthorised access and ensure the safety of your premises.

If you’re considering installing shop shutters, the cost can vary depending on seveRAL factors. These include the size of the shutters, the material used, and whether they are manual or electric. Additionally, the level of security and insulation offered by the shutters can also impact the cost. It’s best to get quotes to discover accurate prices and find the best option to suit your budget and needs. Get in touch with A&C Maintenance today for a quote.

Shop shutters, also known as roller shutters, are a vital security measure for businesses in the UK. These metal doors are installed on the exterior of shops to guard against break-ins and vandalism. With a simple push of a button, shop owners can easily open and close these shutters, offering convenience and peace of mind. Furthermore, shop shutters can assist in regulating the temperature inside the store, enhancing energy efficiency. Overall, these durable and versatile shutters are indispensable for any business seeking to bolster security and protect their assets, and they can be fitted to shops, offices, healthcare facilities, schools, or anywhere else that require additional security.
